OUR PRODUCTS
- 1,500 LBS Capacity
- Wireless Remote Controlled
- Extra Tall Lifting Height
- Powder Coated
- 1,500 LBS Capacity
- Wireless Remote Controlled
- Designed For Low Ceilings
- Powder Coated
- 1,500 LBS Capacity
- Wireless Remote Controlled
- Extra Wide Platform
- Extra Tall Lifting Height
- Powder Coated
- 1,500 LBS Capacity
- Wireless Remote Controlled
- Extra Wide Platform
- Designed For Low Ceilings
- Powder Coated
- 1,500 LBS Capacity
- Wireless Remote Controlled
- Extra Tall Lifting Height
- Powder Coated
- 1,500 LBS Capacity
- Wireless Remote Controlled
- Designed For Low Ceilings
- Powder Coated
- 1,500 LBS Capacity
- Wireless Remote Controlled
- Unique Corner Platform Design
- Extra Tall Lifting Height
- Powder Coated
- 1,500 LBS Capacity
- Wireless Remote Controlled
- Unique Corner Platform Design
- Designed For Low Ceilings
- Powder Coated
Price : $4395.00

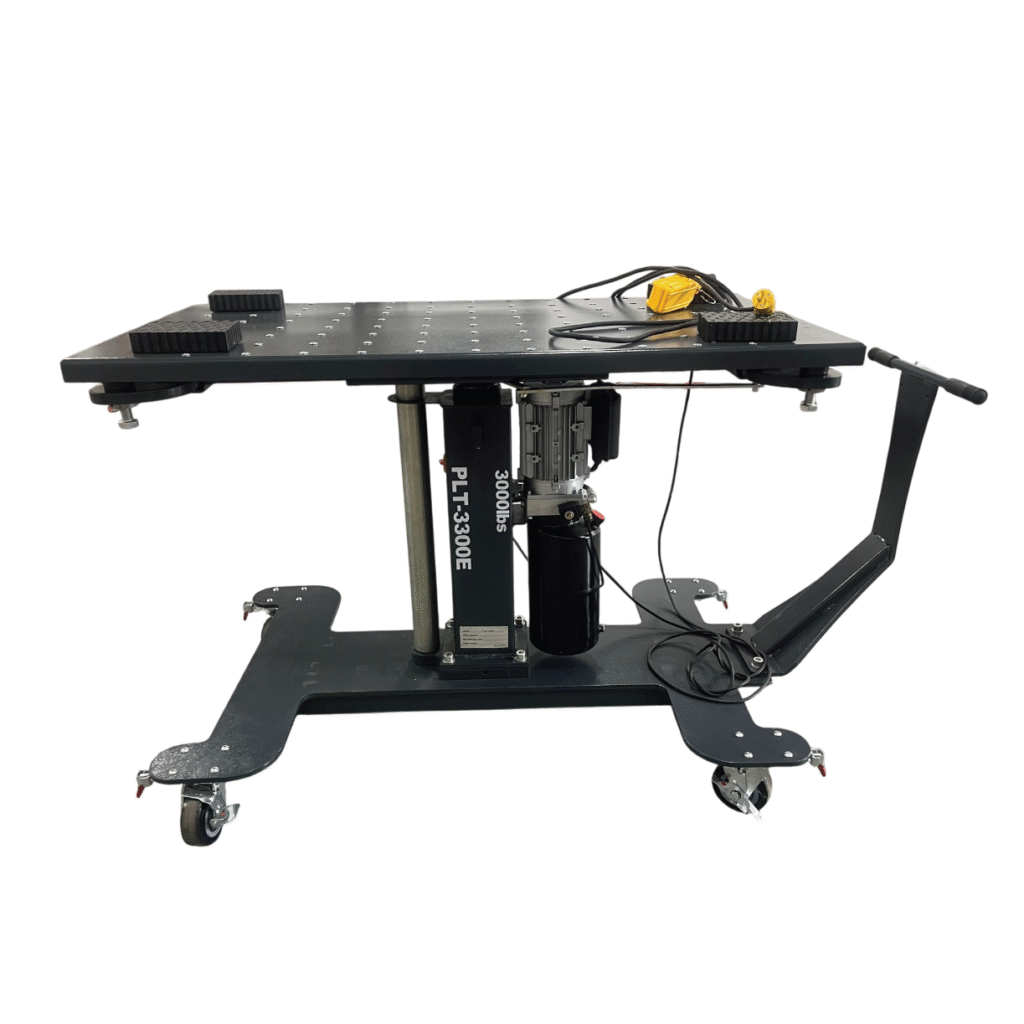

- Electric/hydraulic portable lift table
- 3300 lbs. capacity/ 110V
- EV battery pack installation/removal
- Wired pendant control
- Powder-coated
- Platform Support Option
- Multiple Locking Positions
- Powder Coated
Product Comparison Chart
(Drag left / right to see the whole chart.)
| Models | VSLW-10 | VSLW-8 | VSLS-10 | VSLS-8 | VSLC-10 | VSLC-8 | VSL-10 | VSL-8 |
|---|---|---|---|---|---|---|---|---|
| Capacity * (Weight evenly distributed) | 1,500 LBS. | 1,500 LBS. | 1,500 LBS. | 1,500 LBS. | 1,500 LBS. | 1,500 LBS. | 1,500 LBS. | 1,500 LBS. |
| Column Height | 114" (9'6") | 94.5" (7'10.5") | 114" (9'6") | 94.5" (7'10.5") | 114" (9'6") | 94.5" (7'10.5") | 114" (9'6") | 94.5" (7'10.5") |
| Total Width | 148" (12'4") | 148" (12'4") | 102" (8'6") | 102" (8'6") | 119" (9'11") | 119" (9'11") | 102" (8'6") | 102" (8'6") |
| Platform Width | 144" (12') | 144" (12') | 96" (8') | 96" (8') | 113" (9'5") * | 113" (9'5") * | 96" (8') | 96" (8') |
| Total Depth* | 120" (10') | 120" (10') | 76" (6'4") | 76" (6'4") | 120" (10') | 120" (10') | 120" (10") | 120" (10') |
| Platform Depth | 116" (9'8") | 116" (9'8") | 72" (6') | 72" (6') | 116" (9'8") * | 116" (9'8") * | 116" (9'8") | 116" (9'8") |
| Clearance Under Platform at Max Height | 84" (7') | 67" (5'7") | 84" (7') | 67" (5'7") | 84" (7') | 67" (5'7") | 84" (7') | 67" (5'7") |
| Lifting Time (feet per minute) 110 volt * | 6.5' +/- | 6.5' +/- | 6.5' +/- | 6.5' +/- | 6.5' +/- | 6.5' +/- | 6.5' +/- | 6.5' +/- |
| Lifting Time (feet per minute) 220 volt * | 13' +/- | 13' +/- | 13' +/- | 13' +/- | 13' +/- | 13' +/- | 13' +/- | 13' +/- |
| Shipping Weight | 1,470 LBS. | 1,420 LBS. | 925 LBS. | 890 LBS. | 1,110 LBS. | 1,075 LBS. | 1,200 LBS. | 1,170 LBS. |
| Shipping Dimensions (LxWxH) | 151"x30"x31" | 151"x30"x31" | 115"x29"x25" | 105"x29"x25" | 121"x30"x28" | 121"x30"x28" | 121"x30"x28" | 121"x30"x28" |
- * When weight is EVENLY distributed across platform.
- * Lifting times calculated with no weight on platform.
- * Platform width and depth measurments are at widest/deepest points on platform on VSLC models.
- * Total depth is front of platform to back of the support plate on column base. Does NOT include approach ramps. Add 18" for approach ramps when extended on all models except for VSLS (add 13.5").
- * VSL stands for "Vantage Storage Lift"
- * S stands for "Shorter" column (ex. VSLS-8), W stands for "Wide" (ex. VSLW-8), C stands for "Corner" (ex. VSLC-8)
Frequently Asked Questions
Here are some of the most common questions we get asked. A full list of FAQs can be found by visiting our FAQ page
The servo-motor on all Vantage Storage lift models can operate on either a 110V or 220V (single phase) current. The motor works great on a standard 110V (15 amp) household current. The use of 220V will increase the platform speed in both directions. (See specification comparison chart) If you plan to use your Vantage Storage lift more than a couple times each day, then 220V may be a better choice.
Your household 110V current can be “stepped up” to 220V with the use of a step-up transformer. A step-up transformer safely “transforms” your 110V into 220V (single-phase) current. The step-up transformer plugs directly into your 110V household receptacle. The Vantage storage lift power cord plugs into the 220V output receptacle of the step-up transformer. There are many 220V step-up transformers available on the internet for about $100.00. We recommend a 220V step-up transformer with a minimum rated 3000-Watt capacity.
We recommend that your Vantage Lift be anchored to a concrete floor with a minimum thickness of 3.5 inches and 3500 PSI. The concrete specifications recommended for the installation of a 7,000 lbs. capacity two-post above-ground automotive lift is an excellent guide. If you are unsure about the thickness or integrity of your concrete floor, please consult a professional automotive lift installer or commercial concrete supplier for recommendations.
Each Vantage Storage lift comes with two lengths of 5/8 inch (16mm) concrete wedge anchors. The shorter wedge anchors should be installed through the front/side base holes of the column. The longer wedge anchors are to be installed through both of the holes in the rear base column support brace and through the rear holes in the column base.
The Vantage Storage Lift is available in two column heights, 94.5” and 114”. The shorter column will fit under an 8’ ceiling and the taller column will fit under a 10’ ceiling.
